350-801 Free Practice Test

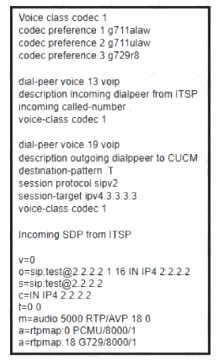

Refer to the exhibit.

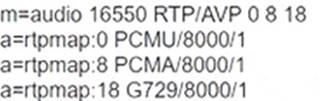

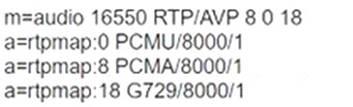

Which outgoing m-line SDP is sent to Cisco UCM after matching the appropriate dial peers via Cisco Unified Border Element?

1. A.
2. B.
3. C.
4. D.

Correct Answer: B

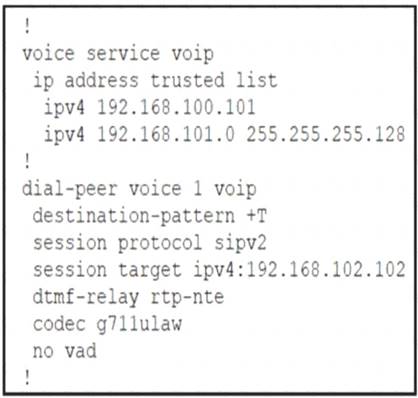

Refer to the exhibit.

When a call is received on Cisco Unified Border Element. from which lP does it allow a connection?

1. A. 192.168.100.103
2. B. 192.168.102.102
3. C. 192.168.100.102
4. D. 192.168.101.201

Correct Answer: B

Why would we not include an end user’s PC device in a QoS trust boundary?

1. A. The end user could incorrectly tag their traffic to advertise their PC as a default gateway.
2. B. The end user could incorrectly tag their traffic to bypass firewalls.
3. C. There is no reason not to include an end user's PC device in a QoS trust boundary.
4. D. The end user may incorrectly tag their traffic to be prioritized over other network traffic.

Correct Answer: D

A network administrator deleted a user from the LDAP directory of a company. The end user shows as Inactive LDAP Synchronized User in Cisco UCM. Which step is next to remove this user from Cisco UCM?

1. A. Delete the user directly from Cisco UCM.
2. B. Wait 24 hours for the garbage collector to remove the user.
3. C. Restart the Dirsync service after the user is deleted from LDAP directory.
4. D. Execute a manual sync to refresh the local database and delete the end user.

Correct Answer: B

Which DHCP option must be set up tor new phones to obtain the TFTP server IP address?

1. A. option 66
2. B. option 15
3. C. option 6
4. D. option 120

Correct Answer: A
