350-601 Free Practice Test

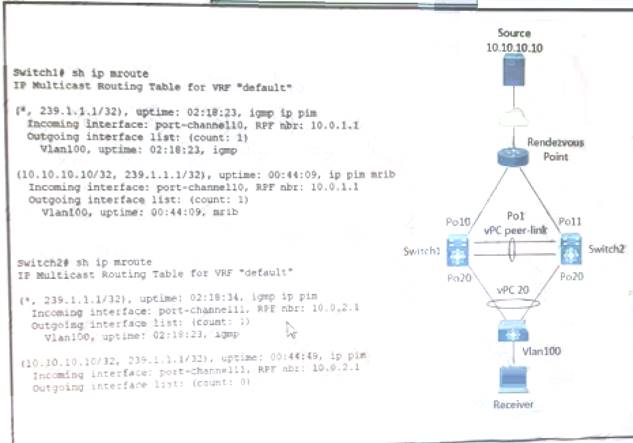

Refer to the exhibit.

A host with source address 10.10.10.10. sends traffic to multicast group 239.1.1.1. how do the vPC switches forward the multicast traffic?

1. A. If multicast traffic is received on Po11 Switch2, the traffic is forwarded out only one Po20.
2. B. If multicast traffic is received on Po10 Switch1, the traffic is forwarded out on Po1 and Po20.
3. C. If multicast traffic is received on Po11 and Switch2, the traffic is dropped.
4. D. If multicast traffic is received on Switch over the vPC peer-link, the traffic is dropped.

Correct Answer: C
https://www.cisco.com/c/en/us/support/docs/ip/multicast/214140-multicast-forwarding-in-vpc-based-on-loc.htm

An engineer needs to connect Cisco UCS Manager to an external storage array. Due to budget limitations, the engineer must connect a Cisco UCS manager directly to an FC storage port. Which two actions must be taken to complete this connection? (Choose two)

1. A. Configure the fabric interconnect in FC switch mode
2. B. Create a storage connection policy
3. C. Set FC zoning to disabled when creating the VSAN
4. D. Configure the fabric interconnect in end host mode
5. E. Create the required VSAN in the SAN cloud

Correct Answer: AC

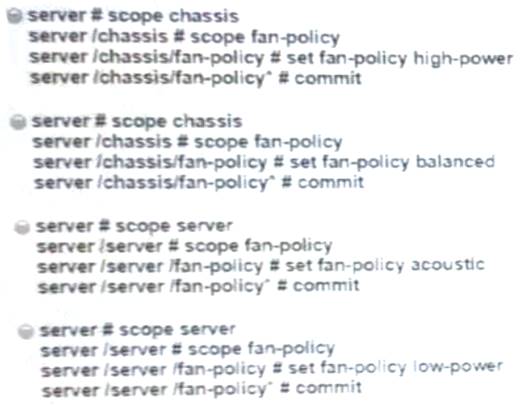

A network engineer must determine the cooling requirements for a Cisco UCS C-Series Rack Server. The server with PCIe cards is configured with a fan configuration policy. Which configuration should be used for the fan policy of the server?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: A

Which component is excluded by default from the host firmware package?

1. A. network interface controller
2. B. board controller
3. C. storage controller
4. D. local disk

Correct Answer: D

Which statement is true about upgrading the firmware on a Cisco MDS storage switch with dual supervisors?

1. A. The standby supervisor must be offline before the firmware upgrade begins.
2. B. Both supervisors load the new firmware and then the active supervisor reboots.
3. C. Supervisors can be upgraded independently to test the new firmware.
4. D. The new firmware is load on the standby supervisor first.

Correct Answer: D
https://www.cisco.com/c/en/us/support/docs/storage-networking/mds-9000-nx-os-san-os-software/118952- technote-mds9k-00.html#:~:text=On a 95xx or 97xx,becomes the new standby supervisor.
