350-401 Free Practice Test

- (Topic 4)
Which device is responsible for finding EID-to-RLOC mappings when traffic is sent to a LISP-capable site?

1. A. map server
2. B. map resolver
3. C. ingress tunnel router
4. D. egress tunnel router

Correct Answer: C

- (Topic 4)
Which tunnel type al'ows clients to perform a seamless Layer 3 roam between a Cisco AireOS WLC and a Cisco IOS XE WLC?

1. A. Ethernet over IP
2. B. IPsec
3. C. Mobility
4. D. VPN

Correct Answer: A

DRAG DROP - (Topic 2)

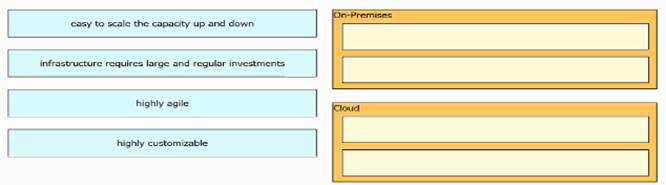

Drag and drop the characteristics from the left onto the infrastructure deployment models they describe on the right.

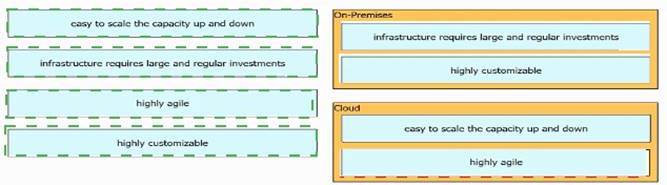

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Topic 2)
Refer to the exhibit.

An engineer must configure static NAT on R1 lo allow users HTTP access to the web server on TCP port 80. The web server must be reachable through ISP 1 and ISP 2. Which command set should be applied to R1 to fulfill these requirements?

1. A. ip nat inside source static tcp 10.1.1.100 80 209.165.200.225 80 extendableip nat inside source static tcp 10.1.1.100 80 209.165.201.1 80 extendable
2. B. ip nat inside source static tcp 10.1.1.100 80 209.165.200.225 80ip nat inside source static tcp 10.1.1.100 80 209.165.201.1 80
3. C. ip nat inside source static tcp 10.1.1.100 80 209.165.200.225 80ip nat inside source static tcp 10.1.1.100 8080 209.165.201.1 8080
4. D. ip nat inside source static tcp 10.1.1.100 80 209.165.200.225 80 no-aliasip nat inside source static tcp 10.1.1.100 80 209.165.201.1 80 no-alias

Correct Answer: B

- (Topic 1)
When a wireless client roams between two different wireless controllers, a network connectivity outage is experience for a period of time. Which configuration issue would cause this problem?

1. A. Not all of the controllers in the mobility group are using the same mobility group name.
2. B. Not all of the controllers within the mobility group are using the same virtual interface IP address.
3. C. All of the controllers within the mobility group are using the same virtual interface IP address.
4. D. All of the controllers in the mobility group are using the same mobility group name.

Correct Answer: B
