200-301 Free Practice Test

- (Topic 4)
Refer to the exhibit.

The administrator must configure a floating sialic default route that points to 2001:db8:1234:2::1 and replaces the current default route only if it fails. Which command must the engineer configure on the CPE?

1. A. ipv6 route ::/0 2001:db8:1234:2::1 3
2. B. ipv6 route ::/128 2001 :db8:1234:2::1 3
3. C. ipv6 route ::/0 2001:db8:1234:2::1 1
4. D. ipv6 route ::/0 2001:db8:1234:2::1 2

Correct Answer: B

DRAG DROP - (Topic 2)

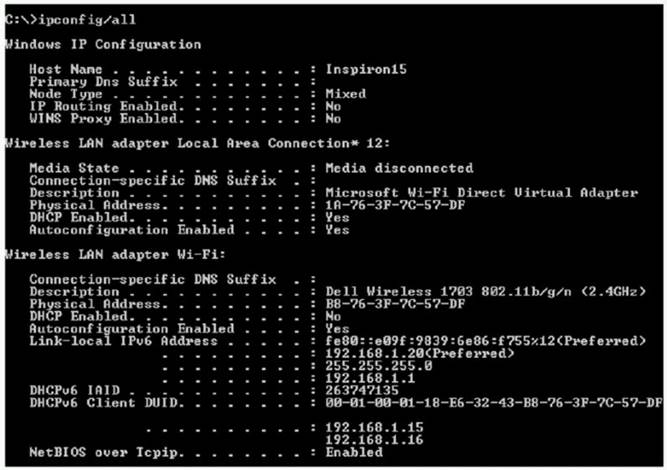

Refer to the exhibit.

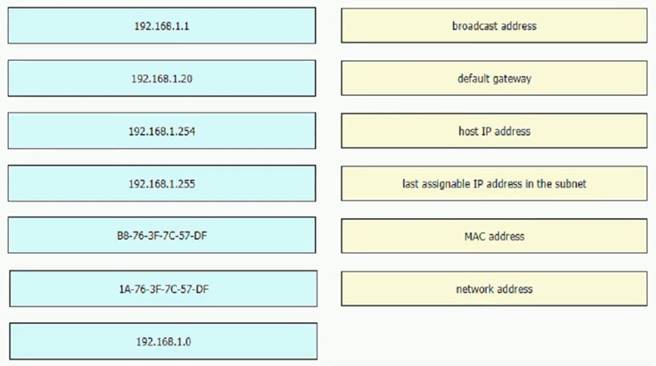

An engineer is required to verify that the network parameters are valid for the users wireless LAN connectivity on a /24 subnet. Drag and drop the values from the left onto the network parameters on the right. Not all values are used.

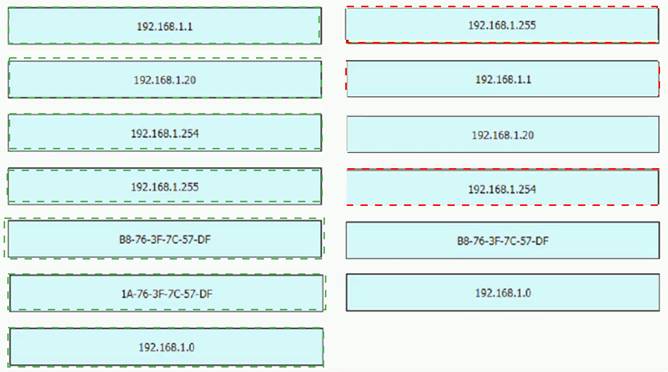

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Topic 4)
Which two wireless security stewards use Counter Mode Cipher Block Chaining Message Authentication Code Protocol for encryption and data integrity'? (Choose two.)

1. A. WPA2
2. B. WPA3
3. C. Wi-Fi 6
4. D. WEP
5. E. WPA

Correct Answer: BD

- (Topic 1)
What is a network appliance that checks the state of a packet to determine whether the packet is legitimate?

1. A. Layer 2 switch
2. B. load balancer
3. C. firewall
4. D. LAN controller

Correct Answer: C

- (Topic 3)
Refer to the exhibit.

R1 learns all routes via OSPF Which command configures a backup static route on R1 to reach the 192 168.20.0/24 network via R3?

1. A. R1(config)#ip route 192.168.20.0 255.255.0.0 192.168.30.2
2. B. R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 90
3. C. R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 111
4. D. R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2

Correct Answer: C
